Custom M5 stainless steel screws with locking serrations, designed for secure mounting of ski bindings to swap plates or inserts.
Custom M5 stainless steel screws with locking serrations, designed for secure mounting of ski bindings to swap plates or inserts.
Binding Freedom

Binding Freedom M5 Flat Head Ski Inserts in Silver

£0.90
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Binding Freedom M5 Flat Head Ski Inserts in Silver

Season:Current

Brand:Binding Freedom

Code:20348M

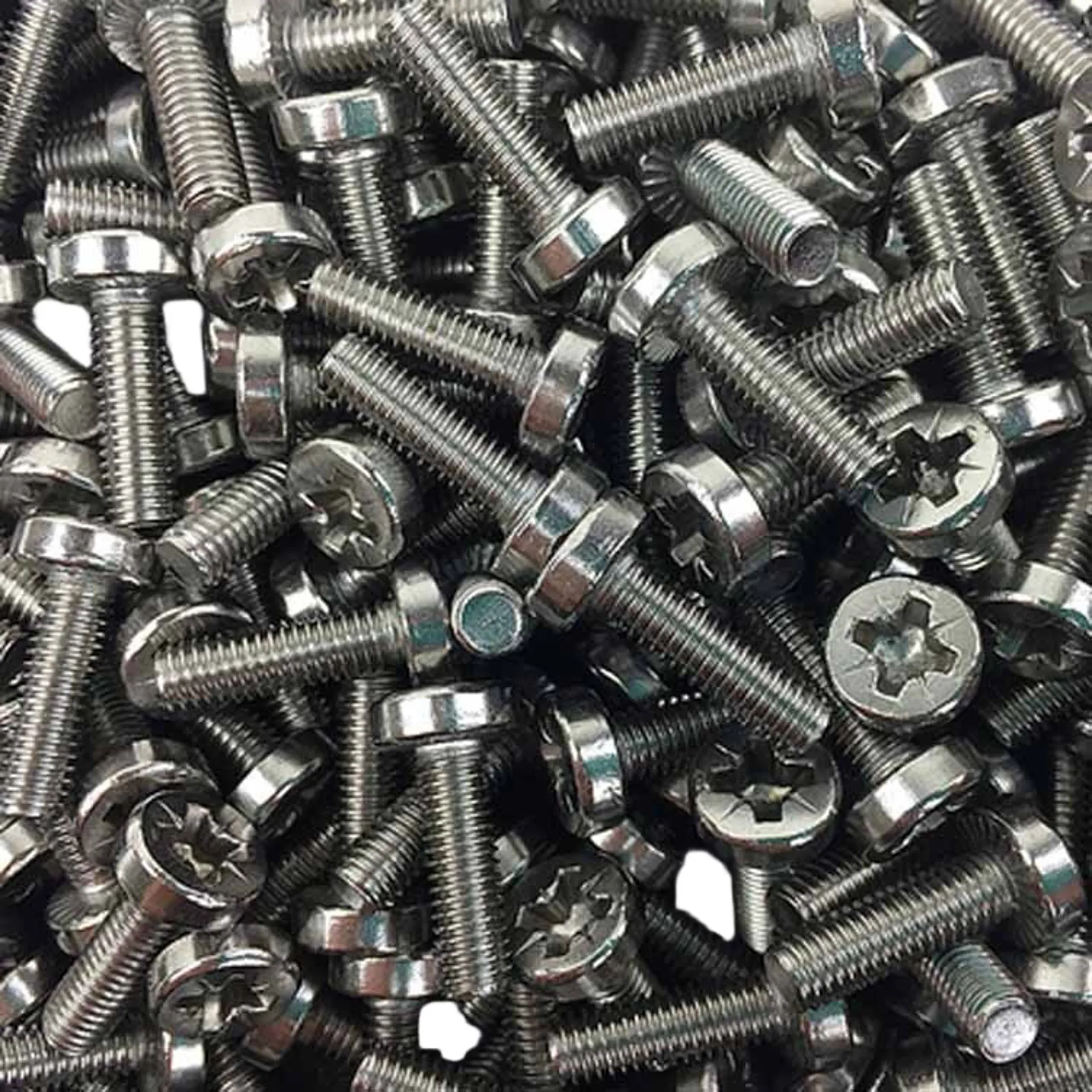

Custom M5 Flat Head Screws for Binding Freedom Inserts

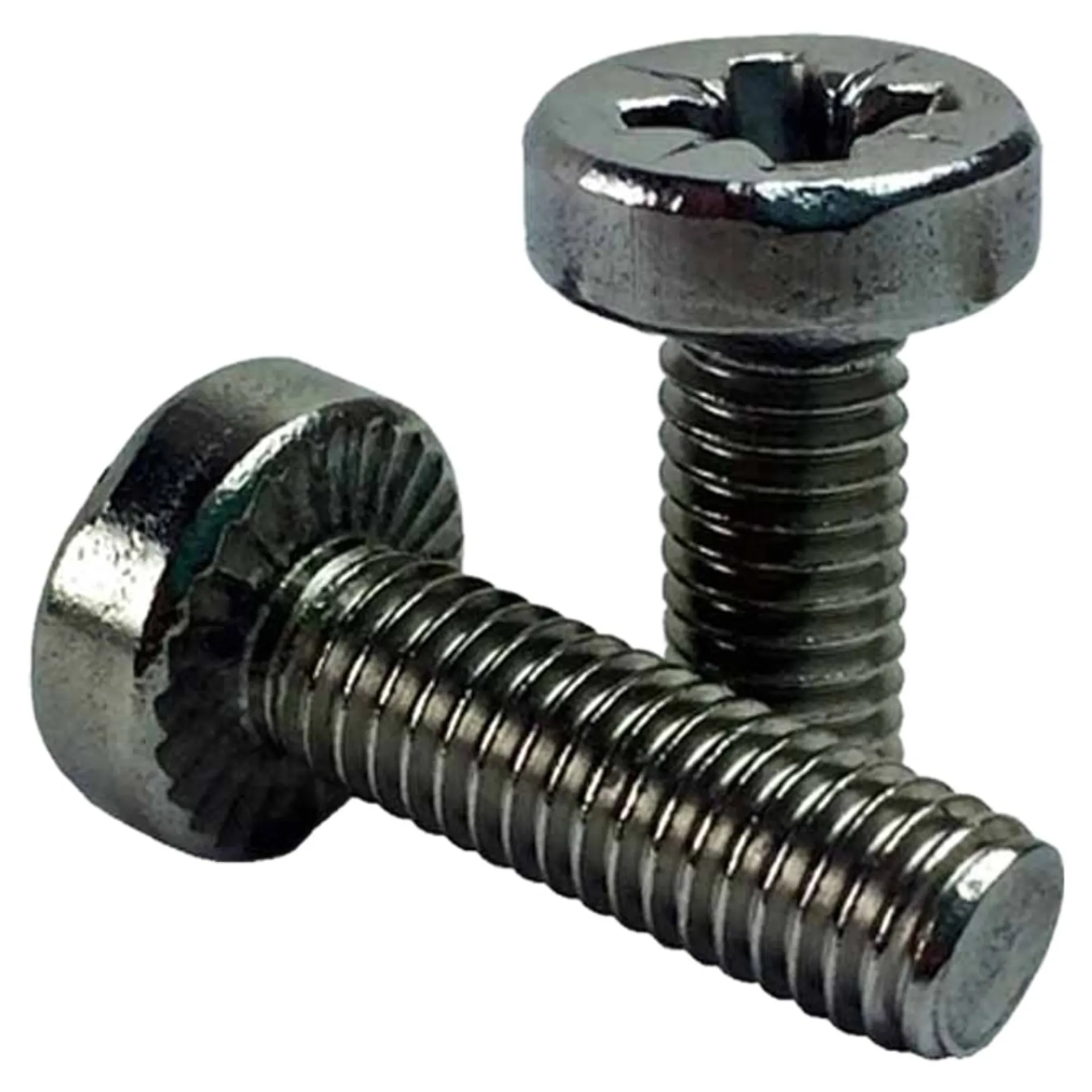

Binding Freedom have tooled up their own custom M5 screws which are specifically made for mounting ski bindings to swap plates or inserts. The head is flat underneath and fits like a button head screw. The underside of the head has locking serrations to help ensure that the screw doesn’t back out over time. High quality stainless steel.

These screws have a 10mm diameter head and use a Pozi #3 screwdriver.

Thread Engagement Warning

It is very important to maximize the number of threads engaged in an insert or a swap plate. Inserts can accommodate from 3mm min to 6mm max of thread engagement; target 4mm. Do not exceed the min/max numbers for any reason – you will not get a secure mount.

These screws fit exactly like allen button heads in terms of length.

Measuring Note

When ordering screws by length, please check you have the correct dimension. Countersunk and Flat head screws are measured differently.

For full instructions on how to install Binding Freedom inserts please click here.

Features:

  • Custom M5 design for ski bindings and swap plates
  • Locking serrations prevent backing out
  • High-quality stainless steel construction
  • 10mm diameter head
  • Requires Pozi #3 screwdriver
Technical Information
  • Weight
    0.005 kg
  • Size
    M5 x 8mm F/H, M5 x 10mm F/H, M5 x 12mm F/H, M5 x 14mm F/H, M5 x 16mm F/H, M5 x 20mm F/H, M5 x 22mm F/H, M5 x 26mm F/H
  • Material
    Stainless steel
  • Head diameter
    10mm
  • Drive type
    Pozi #3
  • Thread engagement
    3mm min to 6mm max
