Custom-tooled M5 screws for mounting ski bindings to swap plates or inserts, featuring locking serrations and high-quality stainless steel.
Custom-tooled M5 screws for mounting ski bindings to swap plates or inserts, featuring locking serrations and high-quality stainless steel.
Binding Freedom

Binding Freedom M5 Flat Head Screw 8mm

£0.90
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Binding Freedom M5 Flat Head Screw 8mm

Season:Current

Brand:Binding Freedom

Code:25005M

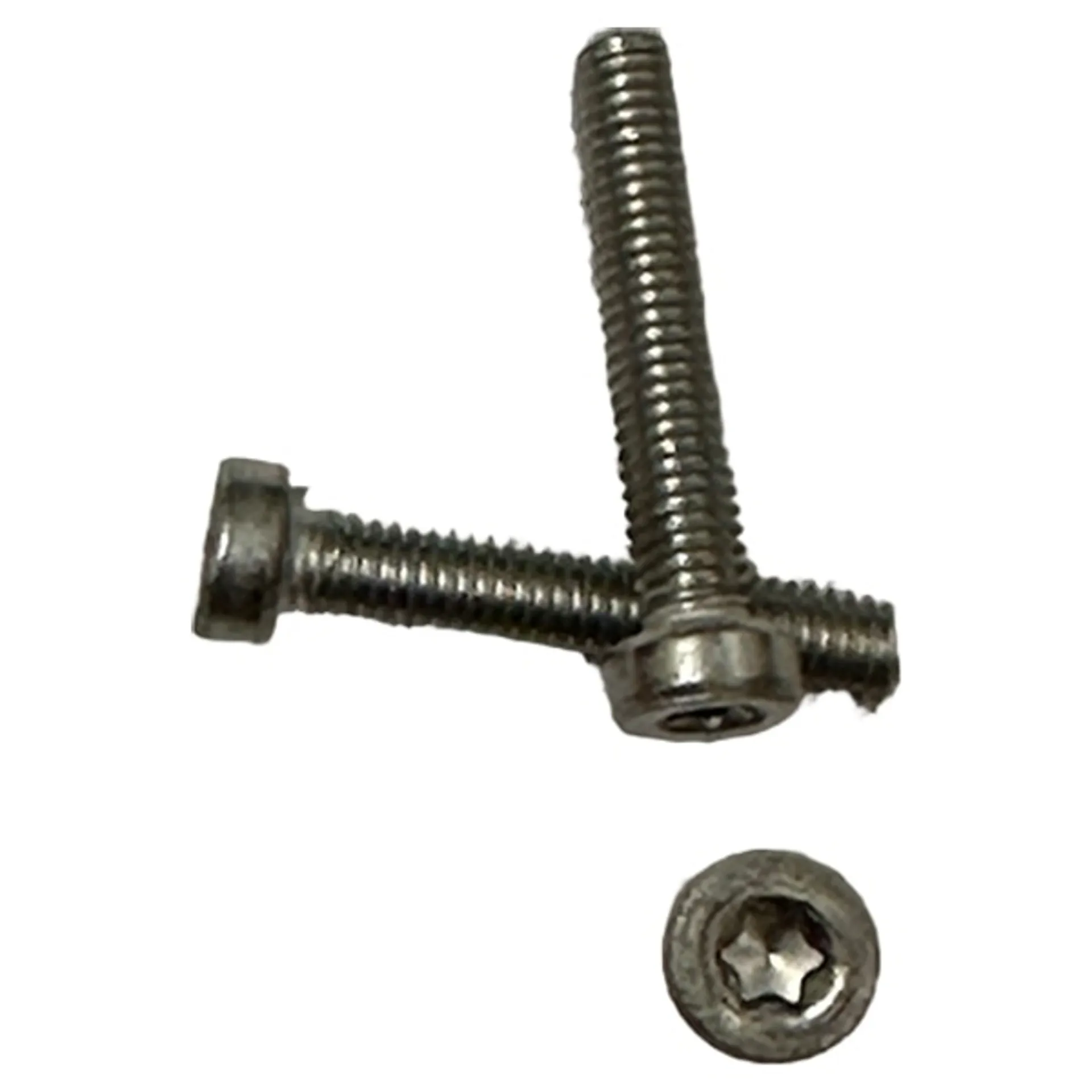

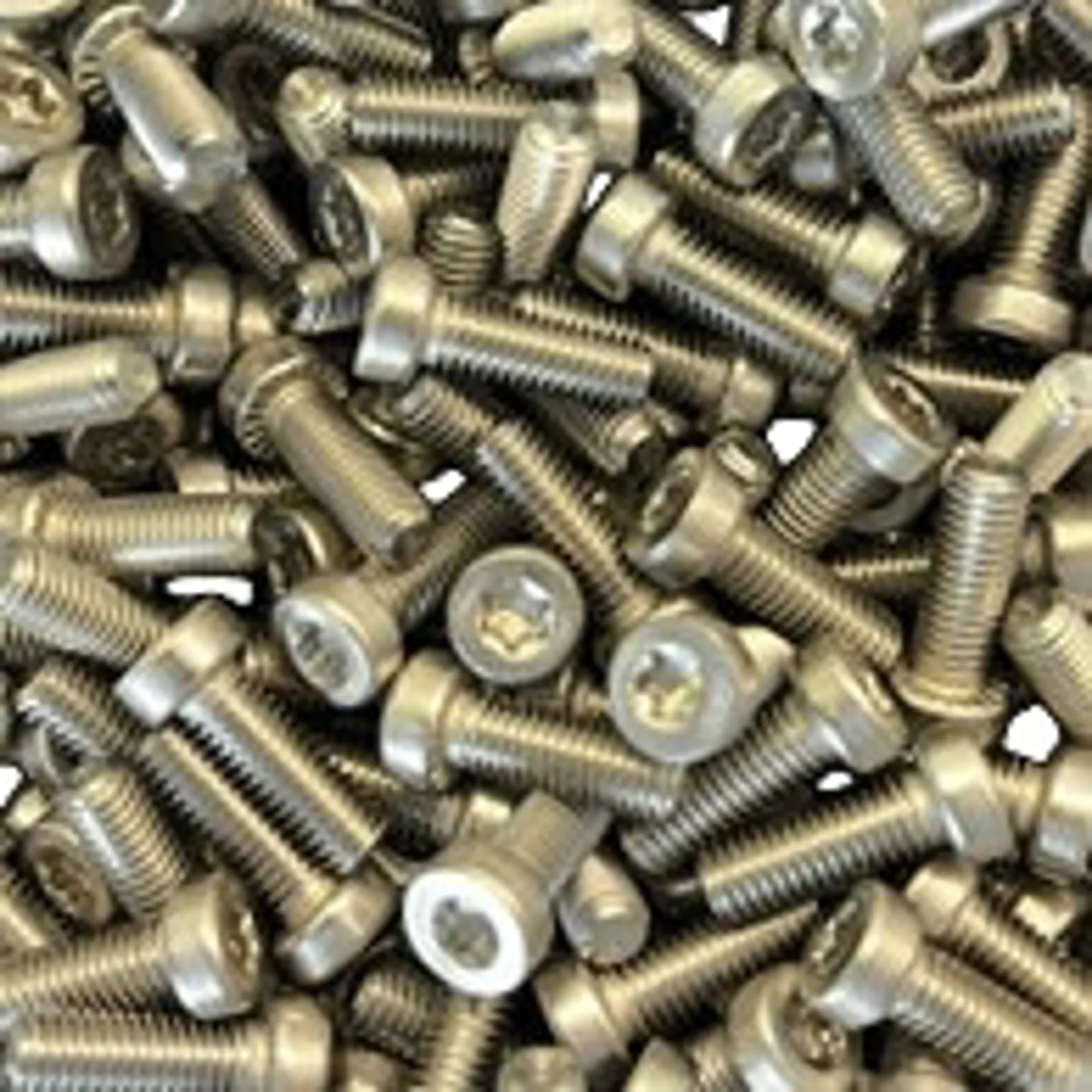

Binding Freedom M5 Flat 8mm Head Screws are custom-tooled for mounting ski bindings to swap plates or inserts.

The head is flat underneath and fits like a button head screw. The underside of the head has locking serrations to help ensure that the screw does not back out over time. These are manufactured from high quality stainless steel.

These screws have an 8mm diameter head and use a Torx20 screwdriver.

Thread Engagement Warning

It is very important to maximize the number of threads engaged in an insert or a swap plate. Inserts can accommodate from 3mm min to 6mm max of thread engagement; we recommend targeting 4mm. Do not exceed the min/max numbers for any reason, as you will not get a secure mount.

Measuring Screws

When ordering screws by length, please check you have the correct dimension. Countersunk and Flat head screws are measured differently.

Features:

  • Custom-tooled M5 screws for swap plates or inserts
  • Locking serrations to prevent backing out
  • High quality stainless steel
  • 8mm diameter head
  • Requires Torx20 screwdriver
Technical Information
  • Weight
    0.005 kg
  • Size
    M5 x 10mm, M5 x 12mm, M5 x 14mm, M5 x 16mm, M5 x 20mm, M5 x 22mm, M5 x 26mm
  • Material
    Stainless steel
  • Head diameter
    8mm
  • Tool requirement
    Torx20 screwdriver
  • Thread engagement
    3mm to 6mm
