Binding Freedom Ski Inserts Installation Tap

£30.00

In stock

Description

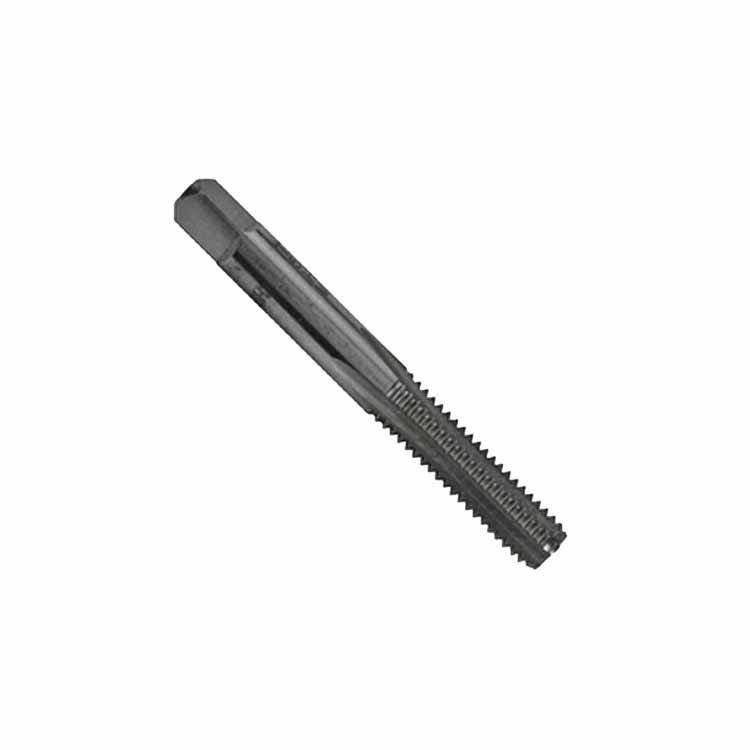

Binding Freedom Ski Inserts Installation Tap

This is a 5/16-18 Bottoming Tap for threaded insert installation. After drilling a 9.5mm deep hole with an “F” drill (.257″ diameter), the tap is used to cut threads all the way to the bottom of the hole to install the insert. A standard tap won’t cut threads all the way to the bottom, and not all bottoming taps cut as deeply. This one is easier to tap straight because it has four flutes, is designed for cutting wood or metal, and cuts all the way to the bottom of the hole. Fits 1/4″ tap handles.

For full instructions on how to install Binding Freedom inserts please click here:

Additional information

Weight 0.050 kg
Brand

Product videos

Binding Freedom: Using the Binding Freedom Installation Tap

A short video explaining how to use the Binding Freedom Installation Tap. This is a 5/16-18 Bottoming Tap for threaded insert installation. After drilling a 9.5mm deep hole with an “F” drill (.257″ diameter), the tap is used to cut threads all the way to the bottom of the hole to install the insert. A standard tap won’t cut threads all the way to the bottom, and not all bottoming taps cut as deeply. This one is easier to tap straight because it has four flutes, is designed for cutting wood or metal, and cuts all the way to the bottom of the hole. Fits 1/4″ tap handles.
